Description

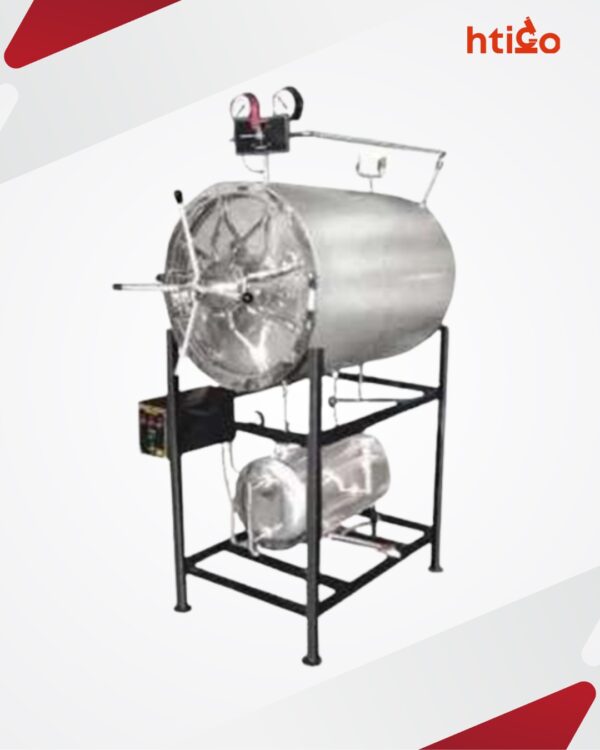

Triple walled construction, inner and outer S.S., hydraulically tested up to 40 psi. Fitted with Pressure gauge and automatically pressure Switch, safety valve, Steam release valve, separate Boiler made of S.S.,Adjustment pressure 10-20 psi, Fitted with Vacuum breaker separate valve for injecting the steam in to the main chamber and releasing the steam out. Automatic low water cut –off device fitted. Supplied with neoprene rubber Gasket and Digital temp controller and Timer. Unit is Fitted On heavy Duty balanced Frame Sterilizing Temp.: 121° Sterilizing Pressure: 17 psi to 22psi. To work on 440 Volt AC 3- Phase Supply.
- Code: HTICO-0091
| Inner Dia x Depth | Heater Load | Capacity | Price |
|---|---|---|---|
| A 16″x24″ | 6 KW | 80 | 280000.00 |
| B 18″x24″ | 6 KW | 100 | 320000.00 |
| C 16″x36″ | 9 KW | 125 | 350000.00 |
| D 22″x30″ | 12 KW | 185 | 380000.00 |
| E 20″x36″ | 12 KW | 200 | 420000.00 |
| F 20″x48″ | 12 KW | 250 | 450000.00 |
| F 24″x48″ | 14 KW | 350 | 520000.00 |
OPTIONAL FOR AUTOCLAVE HORIZONTAL CYLINDRICAL
- 96×200 controller RTD input/low water cut off input/SSR, Relay input and out for heater. Changeable purging and sterilizing range/pressure input controller special for Horizontal Autoclave
- Pressure Transmitter for autoclave (pressure sensor)
- 485 data serial port + data recorder.
- Thermal printing for autoclave
Note Please ask for other capacities of your requirement.
