Description

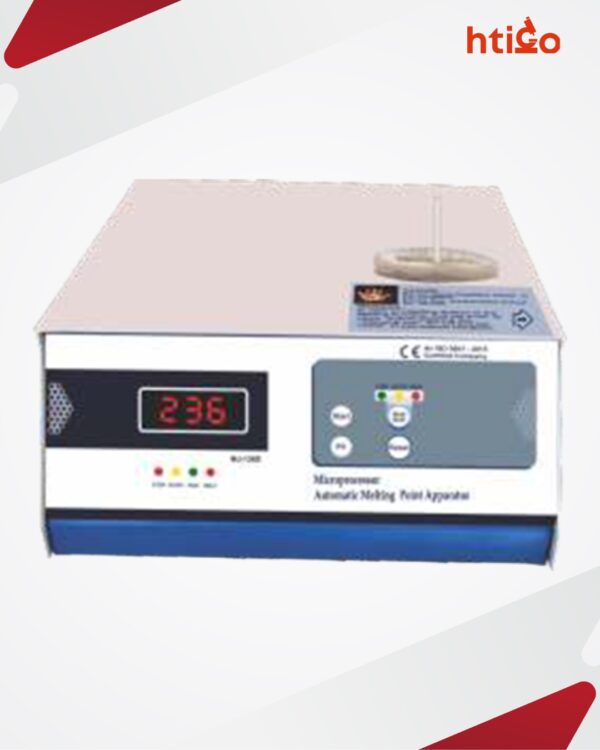

Controlled ,miniature Furnace Type,Temp. Range: Ambient to 350°C Opto- coupled I.R. Transmission based. Only Crystalline sample ( Sample required to be transparent at the time of melting, not Suitable for Dark Colored Samples.)
The Instrument basically consists of a Miniature Controlled,When “Start” key is pressed, heating starts .There is Auto detection of Opto – coupled Infra Red transmission system,, When sample melts, photodiode detects the single and MeltingTemperature put on hold / latched on display automatically. The Furnace becomes off ant the cooling fan ON automatically. The instrument gives audio & visual indications, on reaching the temperature at which the sample melts.
- Code: HTICO-0077
| Temp. Range | Ambient to 350°C |
| Display | 3 Digits LED |
| 3 Digits LED | 1°C |
| Temp. Sensor | Gr”A” PT – 100, Platinum Sensor |
| Sample Capacity | One Sample, Capillary Dimension 1.4 mm |
| Heating Area | Miniature Furnace Module |
| Application | Suitable for Melting Point only |
| Temp. Control / Ramp Rates | Microprocessor controlled closed loop PID, Auto Ramp Rate Heating Auto Adjustable (by selection, Low – Auto – High) |
| Operation | Auto determination of Melting Point |
| Power Supply | 230V±10% ac, 50Hz. |
| Dimension:30x30x15cm | Weating:5 kg. |
